Ozone Generator 10 Gr

• 10G Ozone Generator



  The 10G ozone generator equipment allows to disinfect and purify the air in a natural way from microorganisms that are harmful to health, as well as bad odors.




  This equipment allows an ozone generation of 10 g / h, being able to be programmed weekly (it has 17 on and off programs) and work automatically or manually. Likewise, it has a portable and compact design that allows its use in different spaces and in various applications in a comfortable way.


  For reference, Ozone G10 covers an area of 80 m2 in approximately 22 minutes. In addition, the maximum operating area is 180 m2.





  The principle of operation of this device resides in the generation of ozone O3 in an artificial way.

  The ozone generator connected to the network, takes oxygen directly from the environment and, after a process of controlled electrical discharges, transforms oxygen (O2) into ozone (O3).

  Thanks to the gradual release of this gas, the elimination of fungi, bacteria, viruses, as well as bad odors is favored.





  Depending on its characteristics, the use of this equipment is recommended in shops, offices, cinemas, theaters, bars, nursery schools, etc. as well as for domestic applications in homes.








  MAIN FEATURES:





  Ozone 10G has a series of characteristics that make it a very effective solution for disinfection, air purification and elimination of bad odors.





  • 10G / H continuous ozone generation.
  • Weekly programmable
  • It has 17 on and off programs
  • It allows working automatically (adjusting to the programs made) or manually (always on or always off). This adjustment is made using the MANUAL button on the programmer, as will be seen later (section 6 of the manual).
  • Covers an approximate space of 80 m2 in a time of 22 minutes.
  • Maximum performance area: 180m2
  • Portable and compact design that allows its use in different spaces in a comfortable way.
  • Equipment life: 30,000 hours
  • It is necessary to ventilate the room for a period of approximately 10/15 minutes, once the equipment operation is finished.




  TECHNICAL SPECIFICATIONS OF THE EQUIPMENT:





  Nominal Voltage	220 V/AC
  Frecuency	50/60 Hz
  Ozone production	10 g/h
  Maximum operating surface	180 m2
  Useful Life	30.000 hours
  Number of ozonator plates	2 plates
  Plate Dimensions	100 x 50 x 1 (mm)

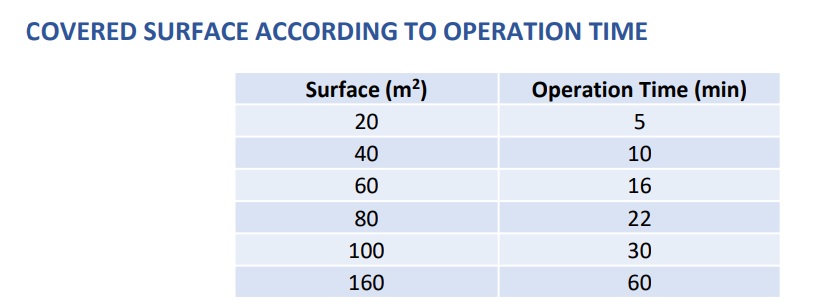

  Area covered as a function of time	5 min (20 m2) ; 10 min (40 m2) ; 16 min (60 m2) ; 22 min (80 m2) ; 30 min (100 m2) ; 60 min (160 m2)
  Power	75 W
  Noise level	37 dB
  Work Temperature	-10°C a 40°C
  Allowable working humidity	35% - 85% RH
  Programmer energy consumption	2 VA (maximum)
  Weight	2,4 kg
  Dimensions	200 x 125 x 125 (mm)

  Recommended installation height 150 - 200 cm DC Voltage 1000 V AC Voltage 1000 V Remarkable TRMS measurements, non-contact voltage detection, peak capture AC Current 1000 A Resistance 40 MΩ Capacitance 40000 µF Frequency 10 MHz DC Current 1000 A Diode and continuity Yes Temperature -20°C ~ +760°C

ADVANTAGES OF THE USE OF OZONE AS A DISINFECTANT:

• It is a very effective cleaning and disinfection procedure, which is also non-polluting and respectful of the environment.
• Ozone has fungicidal properties, which allow it to destroy all kinds of toxins, bacteria and viruses present in an environment, thus purifying the air in each application
• Being a gas, it helps to clean and disinfect the most impractical places
