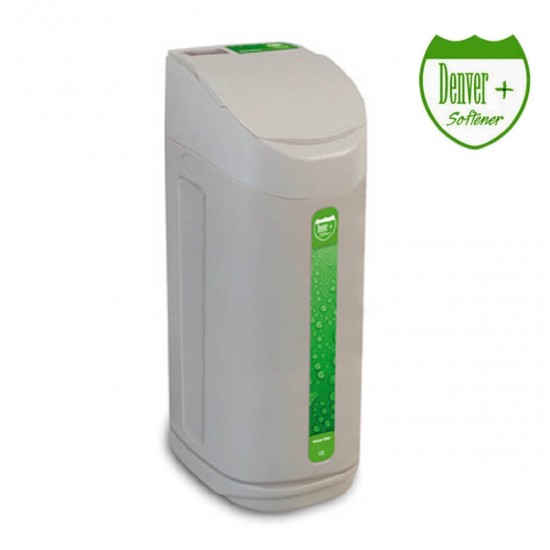

Denver Plus 12 and 30 Softener

Denver Plus 12 and 30 Softener

Compact hydraulic softener

New generation low consumption water softener unit with an attractive cabinet with sliding salt lid and integrated programmer. It incorporates an easy-to-program volumetric valve. Equipment made up of a GRP bottle with upper and lower distributors and a polyethylene cabinet.

Denver 180 valve, electronic programmer, delayed regeneration. Integrated hardness mixer. 3/4”, 1” connection (depending on model). Safety buoy in the cabinet included. Insulation by-pass included in the softener. Isolation by-pass included in the equipment. Residual hardness mixer integrated in the head. Connection by locking clips, reliable and fast.

Its reliable technology (piston valve) and robustness make itvery resistant to the passage of time. Easy and intuitive programming

will allow you to choose between volumetric, chronometric or mixed mode

Connection by means of locking clips, reliable and fast

Cleaning

Denver Plus helps you keep your home clean. Being lime-free water, toilets, taps, screens, showers... are always shiny and like new.

energy saving

It will increase the performance of hot water and heating equipment, keeping your appliances like the first day.

economic savings

It will reduce to 50% the expenses destined to cleaning products and especially anti-limescale.

Since it does not have lime, softened water does not bleach clothes, helping to maintain the intensity of the color of your clothes, their softness and protects them against the passage of time.

Characteristics:

Minimum pressure: 2.5 kg/cm2

Maximum pressure: 6 kg/cm2

Minimum temperature: 4ºC

max temperature: 35ºC

Power supply: 220 V ac – 12 V ac / 50 Hz

Denver Plus 12.5 3/4″

Characteristics

• Dimensions (height x width x depth): 575 mm x 333 mm x 505 mm
• Resin volume (l): 12.5
• Flow (m³/h): 0.5
• Maximum flow in (m³/h): 0.8
• Connection diameter: ¾” M thread
• Min/max pressure working load: 2.5 kg/cm² – 8.6 kg/cm²
• Working voltage: 220V-12Vac/50Hz.
• Working temperature: from 4ºC to 35ºC
• Mix Bypass: Yes

Table of capacities and salt consumption per regeneration:

• Minimum: 31 ºHFxm³ – 0.80 kg
• Medium: 48ºHFxm³ – 1.50 kg
• Maximum: 55 ºHFxm³ – 1.92 kg

Denver Plus 30 1″

Characteristics

• Dimensions (height x width x depth): 1034 mm x 333 mm x 505 mm
• Resin volume (l): 30
• Flow (m³/h): 1.2
• Maximum flow in (m³/h): 1.8
• Connection diameter: 1” M thread
• Min/max pressure working load: 2.5 kg/cm² – 8.6 kg/cm²
• Working voltage: 220V-12Vac/50Hz.
• Working temperature: from 4ºC to 35ºC
• Mix Bypass: Yes

Table of capacities and salt consumption per regeneration:

• Minimum: 115 ºHFxm³ – 1.8 kg
• Medium: 170ºHFxm³ – 3.60 kg
• Maximum: 210 ºHFxm³ – 7.50 kg
