Winny 3 QCC water filters and carbon post-filter
- Stock: In Stock
- Model: Winny 3 filtros de agua QCC y post-filtro carbón
- Weight: 2.00kg
- Dimensions: 55.00mm x 15.00mm x 30.00mm

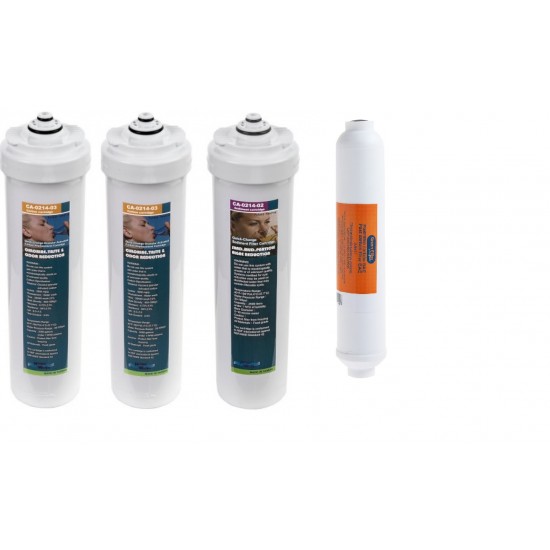

Pack of 4 QCC water filters
Pack of 3 filters for Winny reverse osmosis plus carbon post-filter
Kit of 3 QCC-type bayonet connection filters plus carbon post-filter compatible with the Genius Cabel reverse osmosis equipment from ATH and Iron and Winny I and II from Hidro Water.
Spare parts for compact reverse osmosis equipment: Genius, Compacta Cabel, Iron, Winny I, Winny II.
Connection: bayonet, in-line, QCC.
This pack includes:
- 2 Carbon filter reference CA-0214-03:
Replacement carbon filter with bayonet connection marketed as QCC-10C, ET-GAC, Easy-Twist and CA-0214-03. This filter can be found in Hidro Water and ATH osmosis equipment. Being the original replacement of all of them, since their manufacturer is the same.
Thanks to its QCC bayonet connection system, this filter is very convenient and easy to replace. In addition, the ATH Easy-Twist system is totally safe, head and filter fit perfectly and once in place there is no possibility of leakage.
Technical Characteristics QCC-10C and CA-0214-03
- GAC carbon QCC cartridge.
- Active carbon of the highest quality.
- Unique hydraulic design that will avoid loss of load and premature fouling.
- Temp. max .: 37.70º C.
- Temp. min .: 4.40º C.
- Max pressure: 6.89 bar.
- Shelf life: 6/12 months or 7560 liters.
- It is served in a closed bag to guarantee its hygiene and safety.
Certificates of Quality
NSF / ANSI 42 quality certificate in filter material.
This GAC activated carbon filter in a reverse osmosis equipment has the function of eliminating chlorine and flavors from the water, extending the life of the membrane.
- 1 Sediment filter reference CA-0214-02:
Spare sediment filter with bayonet connection sold as QCC-10P, ET-5µm, Easy-Twist and CA-0214-02. This filter can be found in Hidro Water and ATH osmosis equipment. Being the original replacement of all of them, since their manufacturer is the same.
High quality filter with ET bayonet connection, very convenient for maintenance or replacement. If you want an osmosis equipment that is easy to maintain, it is essential that you use bayonet filters, the QCC connection being really practical and safe.
Technical Characteristics QCC-10P and CA-0214-02
- QCC sediment cartridge 5 microns.
- Made of high quality polypropylene.
- Unique hydraulic design that will avoid loss of load and premature fouling.
- Temp. max .: 37.70º C.
- Temp. min .: 4.40º C.
- Max pressure: 6.89 bar.
- Shelf life: 6/12 months or 2500 liters.
- It is served in a closed bag to guarantee its hygiene and safety.
Certificates of Quality
NSF / ANSI 42 quality certificate in filter material.
This sediment filter in a reverse osmosis equipment has the function of retaining all the suspended particles that the water carries up to 5 microns thick, extending the life of the rest of the filters, mainly the membrane.
- 1 GAC In-Line Classic Compact Carbon Post-Filter:
- Green Filter GAC 2 "In-Line Classic activated carbon cartridge for compact reverse osmosis. Reference: 291617
- This 2 "Post-Carbon Activated Carbon GAC filter is made of 100% polypropylene fibers
- The high quality of this filter helps remove dust, sand and other particles dissolved in the water.
- Shelf life: 1 year
- Temperature: 38ºC - 4ºC
- Max pressure: 8.6 bar
- Length: 10 "
- Diameter: 2 "
- Filtration: GAC post-carbon
- Connection: 1/4 "- F
Compatibilities | |
Compact reverse osmosis | Compatible with Genius Cabel reverse osmosis equipment from ATH and Iron and Winny I and II from Hidro Water |
Plumbing | |
Connection | QCC bayonet connection |
Water treatment system | |
Filtration | GAC carbon, 5 micron sediments and post-carbon |
